This is a contemporary Detached garage designed to create a parking spaces for vehicles and storage for household items.
Prepared by Robert Seward BA(Hons) Arch. ACIAT, Senior Architectural Technologist. Drawings are supplied as sold.
Your drawing set is supplied as a PDF and emailed to you after payment. Structural engineering design and calculations are not included within the standard drawing package, and can be arranged separately at additional cost where required.
These are pre-designed drawing packages supplied as sold. No drawing revisions, alterations or bespoke customisation are included.
Delivery: after payment we set your package up with the options you chose and email it to you as PDF drawings within five working days.
£350.00
Pre-designed. Supplied as sold.
Ready for your builder.
A complete set of professional drawings for a garage, supplied as a fixed, pre-designed set, ready to use for quotes or construction.
One pack. Two purposes. Get quotes. Build.
Select the external finish, roof style and size that suits your property. We’ll prepare your drawings to match.

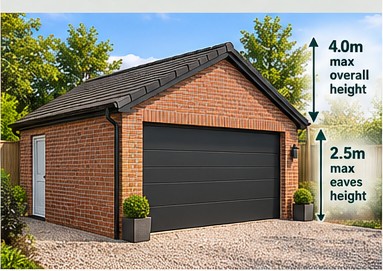

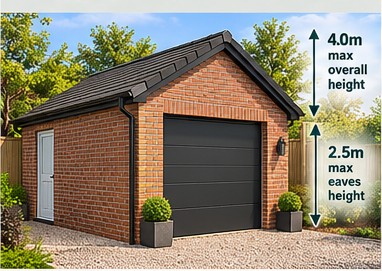

Example render — choose your options
An illustrative render of the options you have chosen. Your drawings are supplied as a fixed, pre-designed set.
Add as many as you need — they all go into one basket and one order.
A complete set of architectural and technical drawings, drawn by our experienced team and supplied as a fixed, pre-designed set.
| C01 | Proposed Floor PlanGeneral Arrangement & Setting Out |
| C02 | Proposed Roof Plan |
| C03 | Proposed Elevations |
| C04 | Foundation, Ground Floor & Drainage Plan |
| C05 | Building Sections |
| C06 | M&E / Building Services Layout |
| SD01 – SDxx | Standard Construction Details |
| SPEC01 | Building Regulations & Construction Specification |
Get accurate quotes
Give the drawings to builders to get like-for-like quotes, so you can compare prices with confidence.
Build with confidence
The same drawings can be used for construction, with the technical detail your builder needs.
Houses only — permitted development rights for these projects don’t apply to flats or maisonettes.
A simple 3-step process from your property details to fully prepared drawings.
1
Tell us about your property
Answer a few questions about your property and choose your preferred material, roof style and size.
2
We issue your drawings
Your complete pre-designed drawing set is prepared for issue in the combination you chose.
3
Use them to get quotes or build
Give the drawings to your builders for quotes, or use them for construction.
Our drawing sets are produced by our in-house team at YPDS, an experienced architectural technology practice, specialising in home extensions and permitted development across England.
Useful information to help you plan your garage.
Garage GuideThe Permitted Development limits that apply to garages, and what they mean for your drawings.Read the guide
Outbuildings and garden buildingsHow outbuildings are treated, including height and coverage limits.Read the guide
Permitted Development guideThe full set of householder guidance, by project type.Read the guide Answer a few questions about your property and we’ll prepare your professional drawing package.
Full detail in our Terms, Cancellations & Refunds.
Not sure this package is right? Ask PERMITTED.
